6-GFM-150
GANGANG or OEM

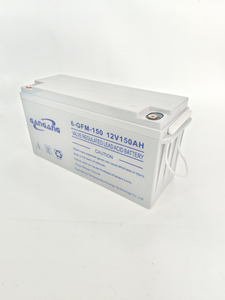

12V 150AH AGM gel solar battery, conbined with AGM and high capacity lead plates, charged with gel glue to activated the plates to store power energy, and whenever you need, the power will be used through inverters or UPS systems to provide power to the electronics applications.
Product Advantage
1.Maintenance free- with the gas recombination technology, there is no need to replenish water or sulfuric acid until tht whole life of the battery.
2. Safety- with the valves covering on the acid filling wholes, when the internal pressure is getting higher, the valves will open and release the pressure power and there will be no danger with harm gas or electrolyte.
3. Low self-discharge rate: high quality Pb Ca alloy plates are used, the over potential of hydrogen precipitation is increased, and the self-discharge rate of the battery is reduced
4. Long Lifespan- at the temperature of 20 degrees, the design lifespan is 10 years and the floating life of the battery could be 3-5 years.
Technical Parameters
| Standard Voltage: | 12V |
| Battery Capacity | 150AH |
| Floating Charging Voltage: | 2.275-2.3V/cell |
| Max Discharging Rate: | 0.1-0.25C |
| Max Charging Currnt: | 0.1C |
| Terminal: | M8 Coppers |
| Working Temperature: | -20℃ to 50℃(-4℉ to 122℉) |
| Dimensions: | 483*170*239 mm |
| Carton Size: | 496*183*273 mm |
| Pieces/ Carton | 1 PCS |
| Storage Self-loss: | 3%-4% per month at 25℃ (-4℉) |
| Battery Unit Weight: | 40KGS |
| Designed Life: | 10 Years |
| Warranty: | 3Years |
Product Uses
The core usage is: UPS/EPS power supplies- whenever there is power off, the backup power will start within 10ms so that the connected; Telecom power station; House Solar and wind power systems; Project Solar systems; Banking power suppliers and health care equipment; Scientific research; Systematic users.
Product Operate Guide
Proper Ventilation: Ensure the area around the batteries is well-ventilated to dissipate heat and prevent the buildup of hydrogen gas.
Secure Mounting: Mount batteries on stable and level racks or trays to prevent movement and potential damage to the terminals.
Correct Cable Gauge: Use the appropriate cable gauge to minimize resistance and voltage drop.
Polarity: Clearly mark and connect the positive and negative terminals to avoid short circuits.
Tight Connections: Ensure all connections are tight and secure to prevent loose connections that could cause sparks or corrosion.
Protective Covers: Consider using protective covers on the terminals to prevent accidental contact or short circuits.
Labeling: Clearly label the batteries and terminals for easy identification during maintenance or troubleshooting.
Avoid Overtightening: When securing the battery terminals, avoid overtightening the nuts and bolts, as this could damage the battery casing or terminals.
Professional Installation: If unsure about any aspect of the installation, consult with a professional to ensure it is done correctly and safely.
